Product details

Your position:Home >> TPR/PVC/TPU sole injection >> ZG. XZSD2-1500 x 2 automatic linear double TR sole injection moulding machine

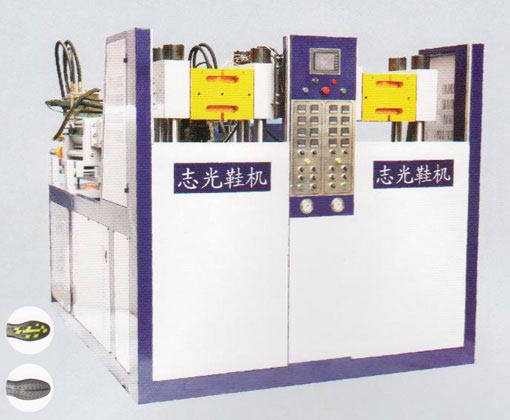

ZG. XZSD2-1500 x 2 automatic linear double TR sole injection moulding machine

Times:       Date:12-10-09
ZG. XZSD2-1500 x 2 automatic linear double TR sole injection moulding machine

1 can be used for the production of thermoplastic material TR / TPR / PVC / TPU.
Cabinet and hydraulic systems integration, and easy to operate.
3 extremely rugged the direct pressure Hopewell touch system.
4 Quick clamping device.
5 die height adjustable.
6 high-quality finished products.
The main technical parameters:

Public median 2,4
clamping force 1500KN
mold size (420 × 380) mm
standard mold 80-200mm
- Opening stroke 300mm
screw diameter 2 × (Φ65/Φ65mm)
Screw Ratio 18:1 / 18:1
maximum range 300mm
injection height 40-120mm
injection speed 10cm/sec
screw speed 0-160 r.p.m
thermostat segment number 4
air pressure system pressure 1Mpa
electric power 2 × 15.2kw
motor power 40kw
fuel tank capacity 1000L
machine weight 8t
machine size (3.1 × 2.2 × 2.3) m
yield 100pairs / h
