XZSDTR1-1000 x 10 full-automatic disc type TR sole injection moulding machine

Times:       Date:12-10-09

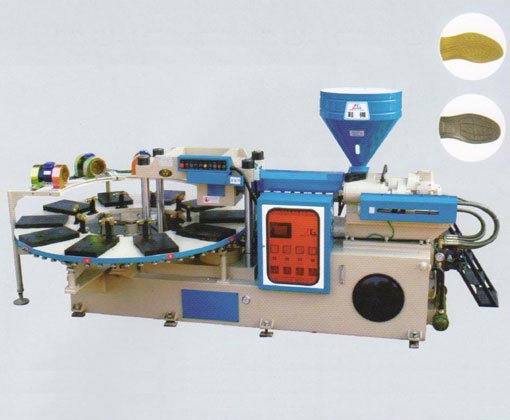

XZSDTR1-1000 x 10 full-automatic disc type TR sole injection moulding machine

performance characteristics
1 microcomputer control technology to achieve the state of the whole work, full monitoring, automatic fault alarm function.
2 "touch" the man-machine interface, so that each set of operating parameters and to achieve a comprehensive and intuitive.
3 high-speed electronic the electronic count coding technology, precise control of the injection volume.
4 double metal screw, tripling its service life than conventional general screw.
High pressure clamping, the soles of forming a more perfect, and no further processing.
The main technical parameters:

Public median 10
clamping force 1000KN
Recommended (500 × 380 × 200) mm
screw diameter Φ75mm
maximum range 200mm
injection pressure 84MPa
injection speed 10cm/sec
screw speed 0-250 r.p.m
thermostat segment number 4
fan power 3.8kw
electric power 10.4kw
motor power 22kw
fuel tank capacity 680L
machine weight 4.5t
yield 60-80pairs / h
