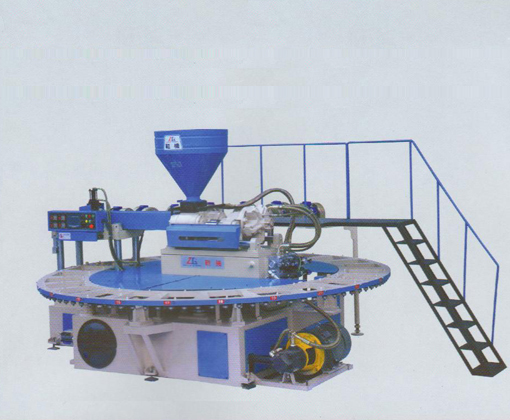

ZG. XZSD1-600 x 24 disc type monochromatic plastic slippers injection blow molding machine

Times:       Date:12-10-06
ZG. XZSD1-600 x 24 disc type monochromatic plastic slippers injection blow molding machine

performance characteristics:

1 microcomputer PLC control, full control of the machine working condition, with automatic fault alarm function.
2 touch human-machine interface, so that each set of operating parameters and to achieve a comprehensive and intuitive.
3 high-speed electronic the electronic count coding technology, precise control of the injection volume.
4 double metal screw, tripling its service life compared to conventional screw.
5 add special inflatable device, wearing more comfortable shoes.
6 rational layout, small footprint.

main technical parameters:

Public median   24
clamping force   600KN
Recommended   (500 × 300 × 250) mm
screw diameter   φ75mm
aspect ratio   20:1
maximum range   200mm
injection pressure   66MPa
injection speed   10cm/sec
screw speed   0-200 r.p.m
thermostat segment number   4
fan power   3.8kw
electric power   10.4kw
motor power   22kw
fuel tank capacity   680L
machine weight   6.5t
machine size   4.7 × 4 × 2.35m
yield   180paris / h
